SiC Module Cross-Reference Library

A cross-reference table maps an original manufacturer's SiC module to an equivalent part with the same package, pinout and ratings. Pick your package and voltage below to find pin-to-pin alternatives — the fastest route to a second source or a cost-down redesign.

Which package and voltage are you replacing?

How does pin-to-pin replacement work?

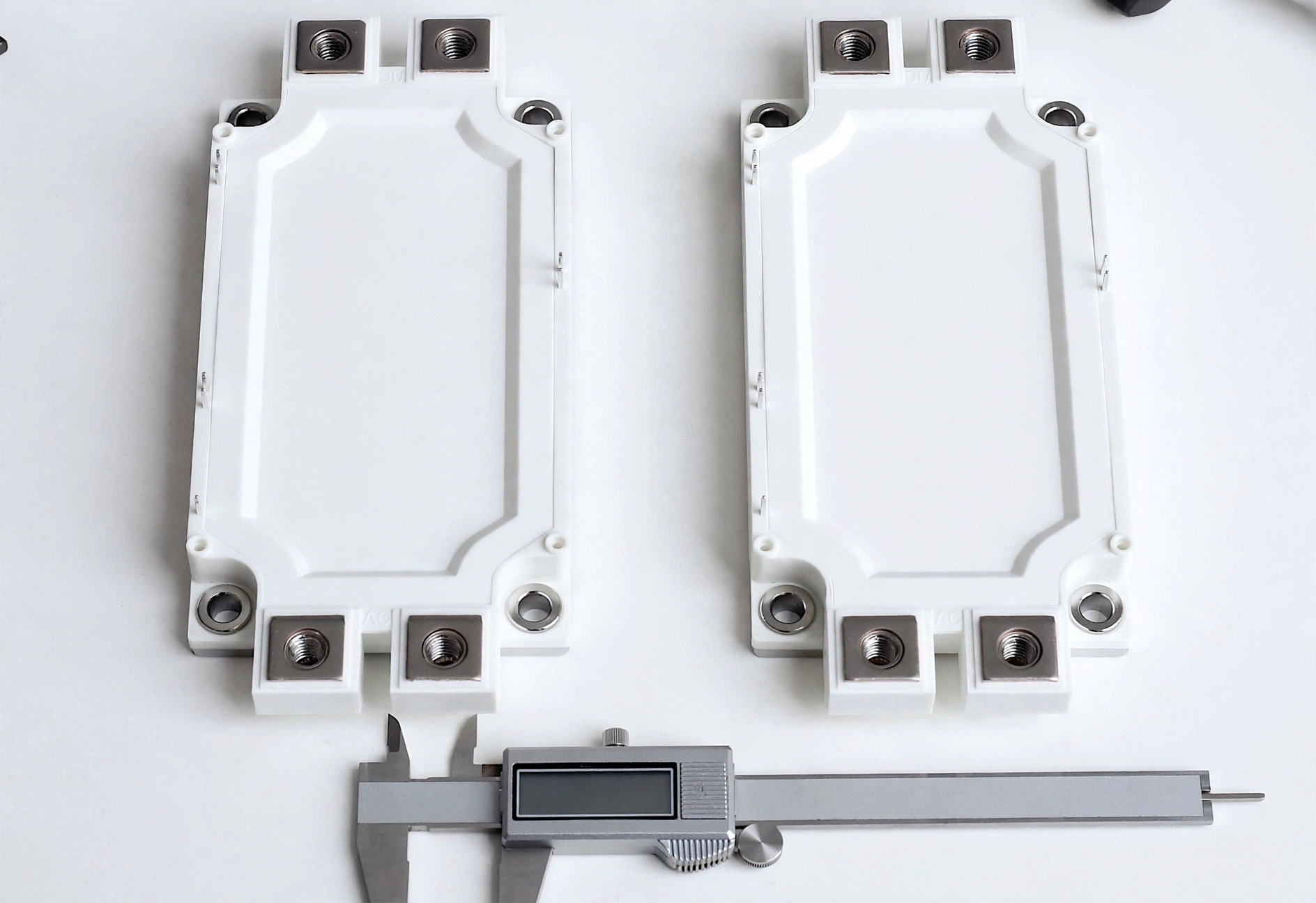

1. Match the footprint. Industry-standard packages (62mm, 34mm, EasyPACK) share mechanical drawings across vendors — the module drops into the same heatsink and busbar.
2. Match the ratings. Blocking voltage must be identical; current rating equal or better at your operating temperature.
3. Check the gate drive. Threshold voltage and recommended Vgs(on)/Vgs(off) must fit your existing driver — or budget a driver tweak.
4. Verify thermals and parasitics. Compare RthJC and internal stray inductance; re-run double-pulse tests.
5. Re-qualify in system. Switching waveforms, EMI and thermal cycling before committing to volume.

Full methodology: How to Replace Original SiC Modules with Pin-to-Pin Alternatives.
